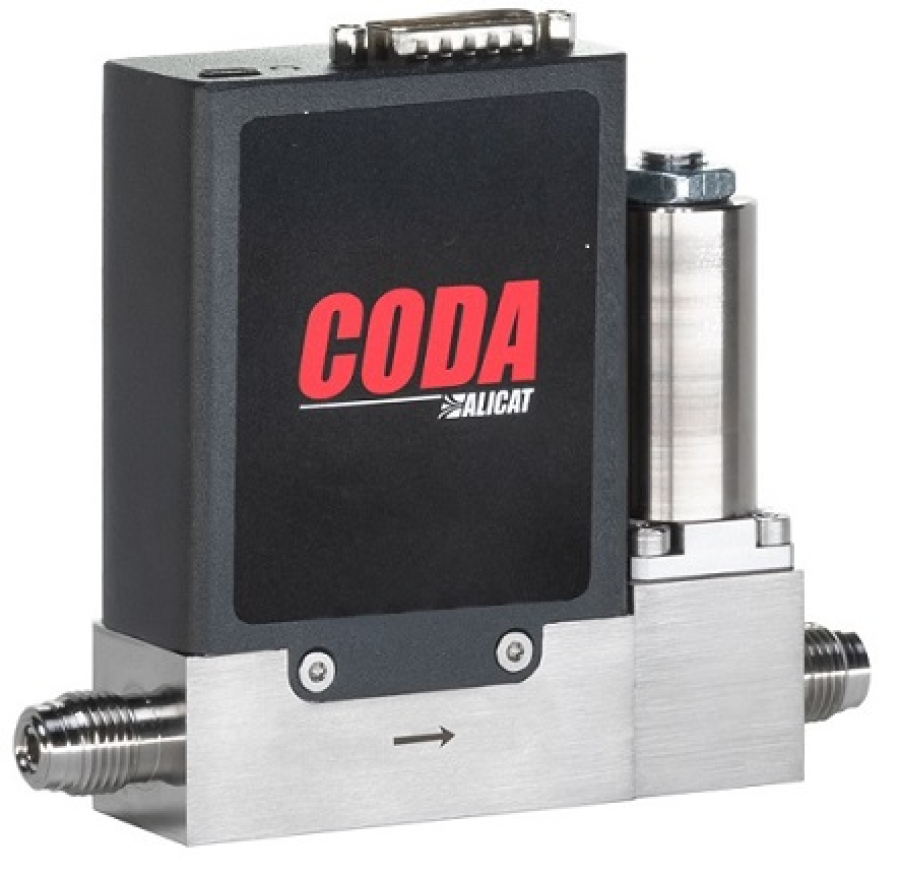

Use the highly accurate CODA controllers with an accuracy of ±0.2% of reading under extreme operating conditions. They are compatible with a wide range of liquids and gases (including many corrosive substances) and ensure a highly accurate control even with changing or unknown composition. Insensitivity to external vibration enables high-precision control of processes even under the most difficult conditions.
CODA KC-Series performance
Available full scale ranges: 40 g/h to 100 kg/h
Steady state control range: 2% – 100% of full scale
Accuracy calibration, NIST-traceable (liquid): ±0.2% of reading or ±0.05% of full scale, whichever is greater
Accuracy calibration, NIST-traceable (gas): ±0.5% of reading or ±0.05% of full scale, whichever is greater
Repeatability: ±0.05% of reading or ±0.025% of full scale, whichever is greater
Zero stability: ±0.05% of full scale
Typical control response time: as fast as 500 ms
CODA KC-Series operating conditions
Operating temperature: –35 to 70°C (fluid); 0 to 60°C (ambient); consult Alicat for additional options
Proof pressure: 1500 PSIA most units; 200 PSIA for 40 g/h units; optional 4000 PSIA for ≥100 g/h
