The immission measuring station with enormous energy savings and very small space requirement!

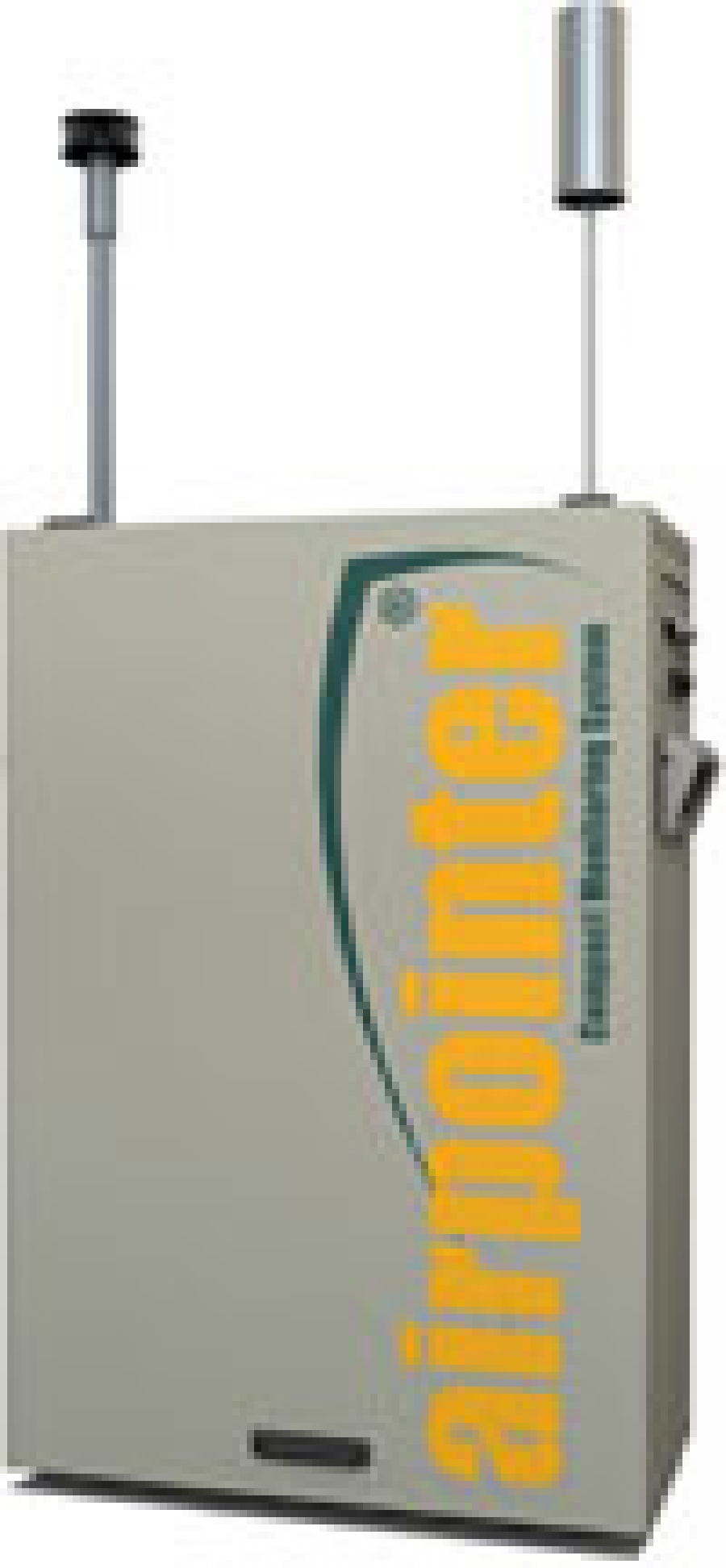

Air quality measurement - The next generation The airpointer® is the world's first compact "plug-and-play" air quality measurement system. Thanks to its optimized dimensions and modular platform, you can measure a variety of pollutants at any location - with up to seven analysis modules for CO, NO/NO2/NOX, O3, SO2, H2S, VOC as well as PM10 and PM2.5. In addition, sensors are available for measuring indoor air quality. Customize your airpointer® according to your individual measurement requirements with our unique SIP sensor interface platform.

The airpointer® is tested by TÜV Rheinland according to the European standards and the VDI guidelines for the gases O3, CO, SO2 and NO/NO2/NOX. in the PM version also for fine dust PM10 / PM2,5.

Save time and money!
Thanks to an optimised energy management system and low maintenance requirements, the airpointer® offers the lowest operating costs in environmental measurement technology. The airpointer® requires only approx. 10% of the space, has only approx. 10% of the weight and the energy requirement is less than 10% compared to a conventional measuring station. The need for on-site service is also drastically reduced by the remote-controlled operation. For this reason, the airpointer® is the optimal system for monitoring ambient air quality. A standard internet connection and a web browser allow you access to the data, you do not need any special software, the standard browser is sufficient.

with elevator	background measurement

With the airpointer® the construction of an air monitoring network is only a few clicks away. Simply install an airpointer® at the measuring point. It will work continuously and store the measured data on the internal hard disk with a storage capacity of many years. You can access the data and the internal parameters via a modem (GSM, GPRS, UMTS) or LAN (direct, cable or wireless). Its robust housing is air-conditioned and equipped with the infrastructure of a complete classical measuring station. The airpointer® is operated via your web browser. The simple installation, the "Plug&Play" design and the mobility make the airpointer® the device of your choice for modern ambient air monitoring. The modular concept and the advanced user interface give you the flexibility to meet current and future needs.

Applications:


  Konfiguration:

Any combination of one to four air pollutant monitors, fine dust PM10 or PM2.5 and meteorology sensors is possible.
A small side service door allows access for calibration gases and filter changes without opening the airpointer®.
The gas measuring modules in the airpointer® are also available with calibration modules for automatic calibration.
For the power supply the airpointer® needs a normal house connection 230 Volt.
