✓ For the isolation, the purification and the collection of samples
✓ Cold room - friendly design
✓ Collects fractions / time, drop - count or pumped volume
✓ Operation via user-friendly touch screen and / or software

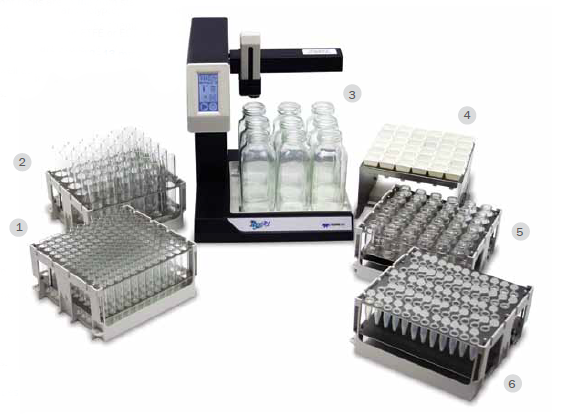

✓ Large & variable sample capacity:
- 12 - 13 mm Tubes
- 16 - 25 mm Tubes
- Bottles
- Funnel - Racks (für unlimited volumes, Outlet - Tubings connected below): made out of the chemically resistant ETFE or ECTFE & with special tubings for organic / inorganic applications
- Scintillation - Vials
- Micro - Centrifuge - Tubes
✓ Racks consist of stainless steel / polypropylene

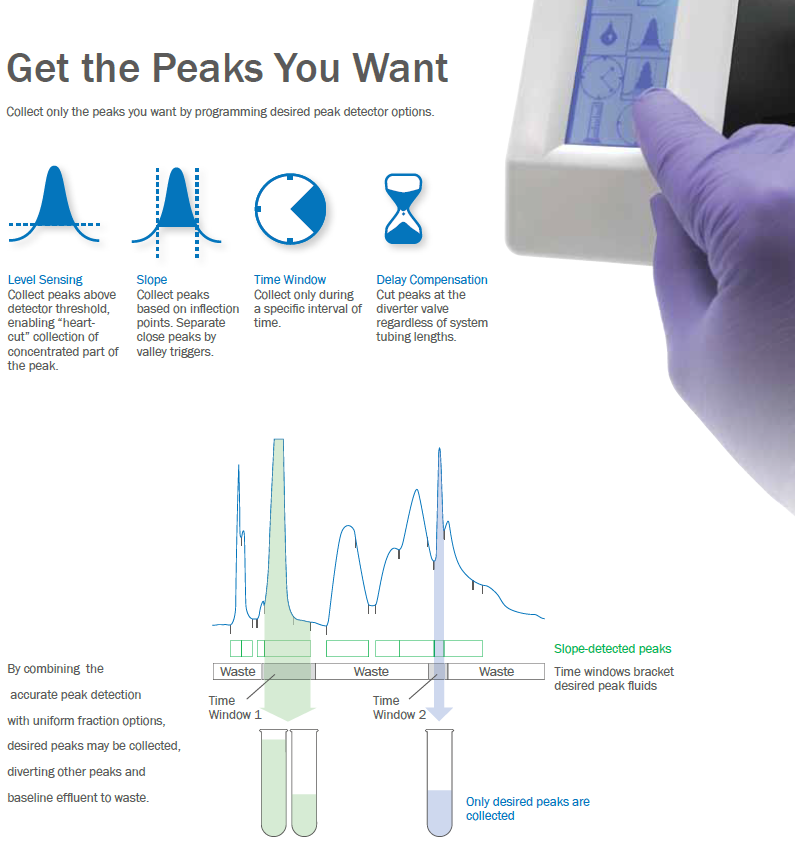

✓ Selective collection of analytes:
Thanks to any combination of programmed time, threshold value, peak slope and any eventual delay compensation, you can collect exactly those fractions you need and transport all other effluents into the desired waste.

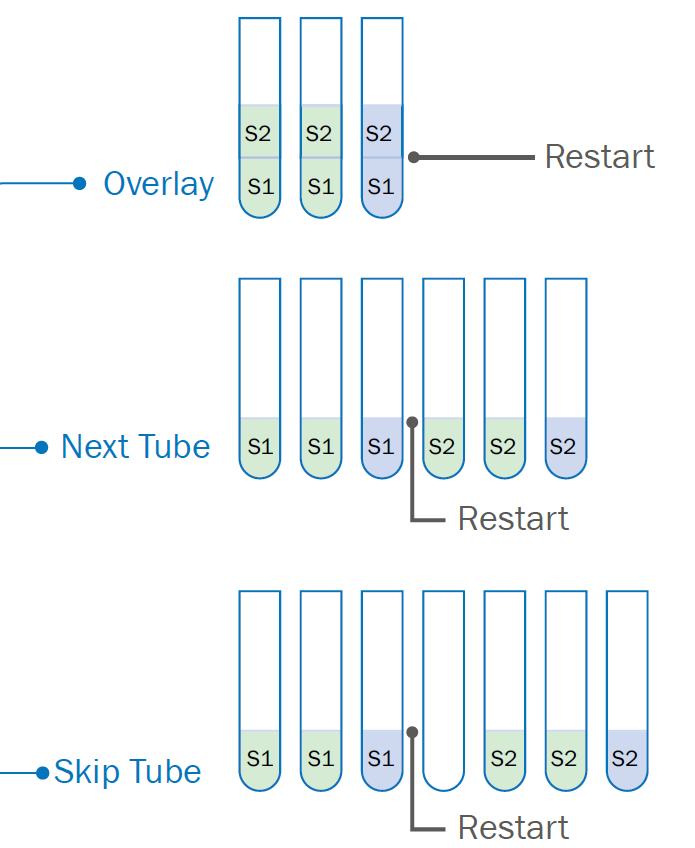

✓ Easily programmable fraction collection cycles:
This includes the general collection process, tube-to-tube speeds, multiple fraction collections (e.g. during purification procedures), etc.

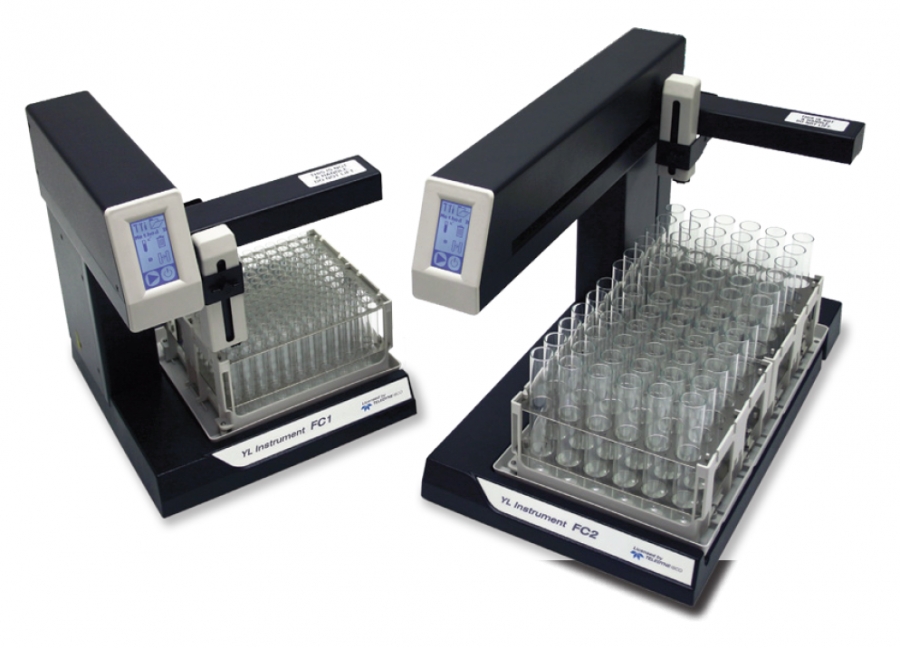

| Technical Details - FC 1 vs FC 2 |
|
| FC 1 | FC 2 |
| Flow rate: up to 25 ml/min | Flow rate: up to 125 ml /min |
| Sample capacity : 1 Sample rack, see above | Sample capacity: 2 Sample racks, see above |
| - | Integrated radio frequency, to be able to automatically recognize collection racks |
