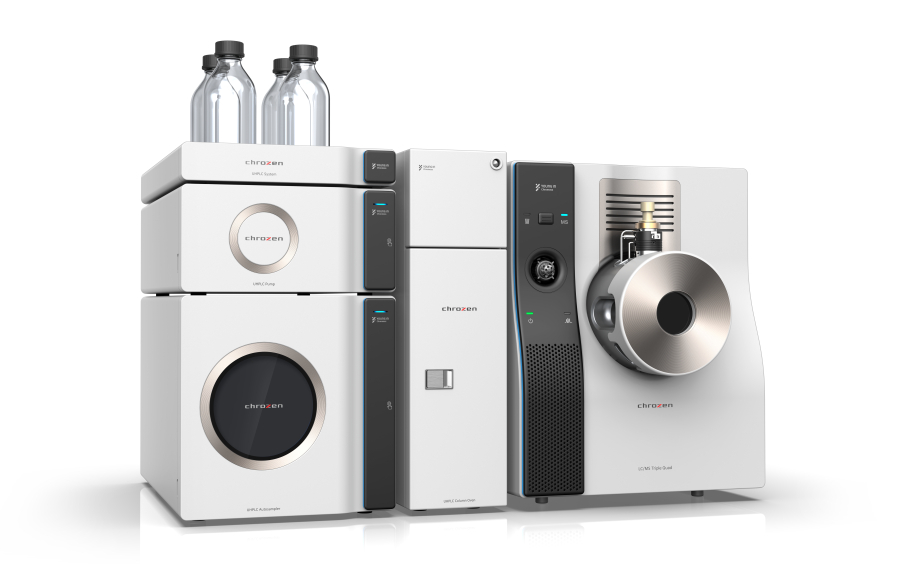

ChroZen TQ LC/MS

Set the highest standard for Triple Quadrupole LC/MS

You may have been faced the situation to deal with tons of analyses for complex compounds that also need to consider all the factors such as separation, sample concentration, repeatability and the data process within the limited time. These can be lots of pressure for you to make a critical decision on the quantitative information while ensuring the accuracy and precision. ChroZen TQ LC/MS eliminates all of your concerns for complicating analysis including structural similarity of co-eluting compounds and matrix with superior sensitivity and reliable quantitative data by simplifying your workflow in a single method. Every single part of ChroZen TQ LC/MS maximizes the laboratory efficiency by providing the enhanced selectivity for the lower limits of quantitation and simultaneous data processing without extra method developments.

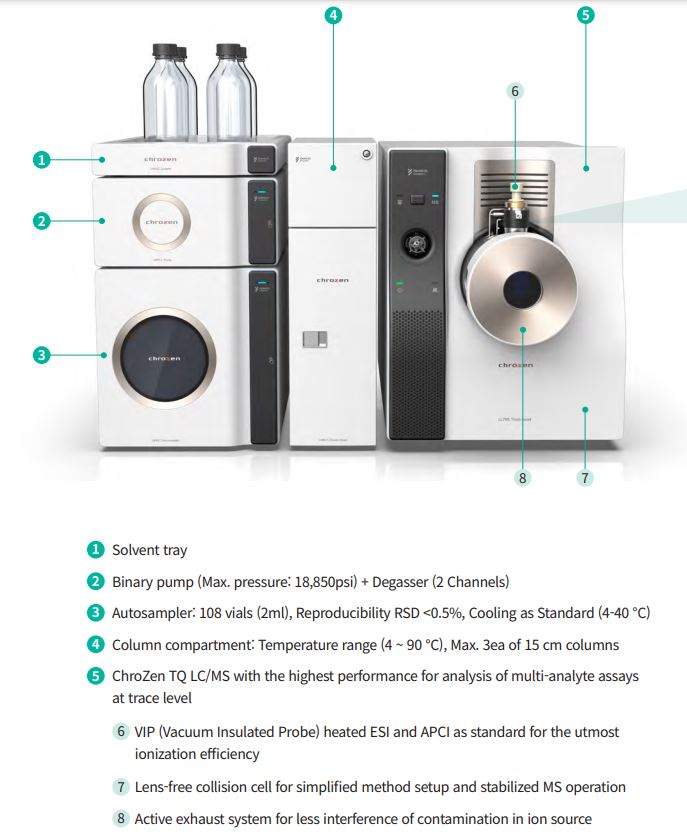

ChroZen TQ LC/MS in your sight

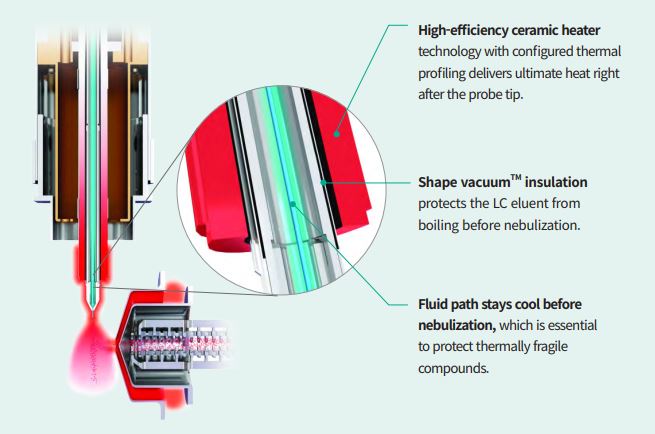

VIP Heated-ESI

VIP (Vacuum Insulated Probe) Heated-ESI efficiently ionizes thermally fragile compounds such as nitrogen oxides, metabolites and certain pesticides without thermal degradation to ensure the exceptional sensitivity and reproducibility even for the trace level of samples.

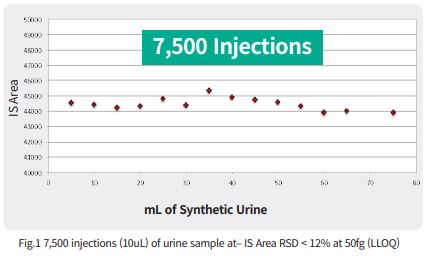

Active Exhaust

The active exhaust system designed to reduce chemical noise and improve sensitivity eliminates the recirculation of nebulized gases, which can be caused at a pressure difference between the ion source chamber and a conventional exhaust system. The large exhaust hole successfully captures the nebulized gases, thus, this leads significantly improved robustness in the ion source and the data reliability.

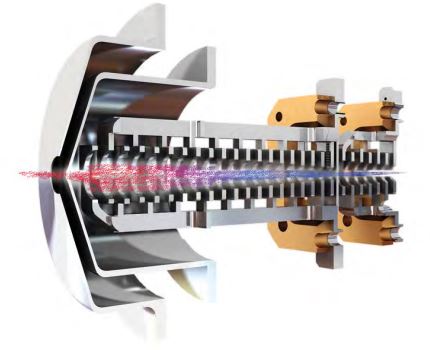

IQ (Interlaced Quadrupole) Dual Ion Funnel

There are 2 stages in the ion funnels. The contamination removal takes at the first funnel and the ion focusing at the second funnel with RF only. This technology enhances the instrument robustness and maximizes the sensitivity while saving time without compound-dependent tuning (Direct Current Voltage).

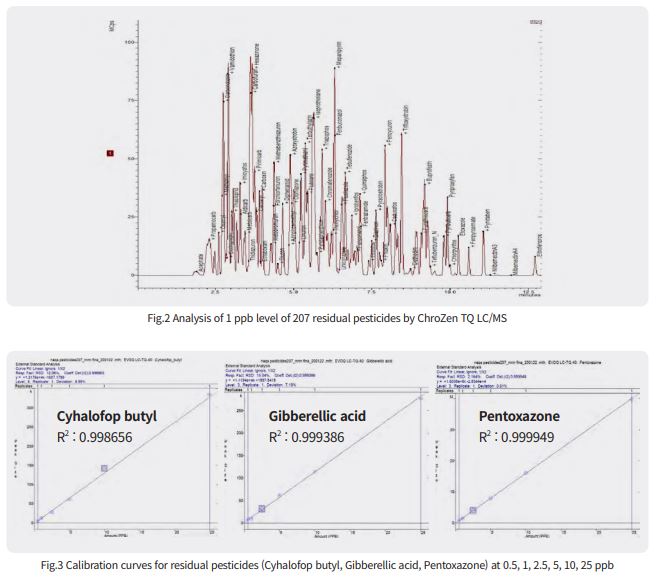

Analysis of 207 Residual Pesticides

You can achieve the low detection level at a few ppb in a single method for some kinds of residual pesticides such as Cyhalofop butyl, Gibberellic acid, Pentoxazone, etc that have poor ionization efficiency and this shortens your time for determination of thousands of compounds with accuracy and precision.

Do not hesitate to contact us if you would like more information or need a quote.
